PRODUCTS
Fibre Optic Patch Cord
Suitable Application :
- Local Area Network, Wide Area Network, Fibre To The Home (FTTH), Fibre Optic Networking, Telecommunication Network, Testing Instrument, Active Device Connection, Cable TV
Description :

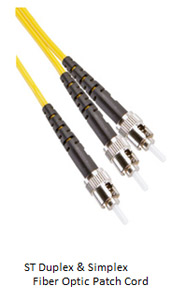

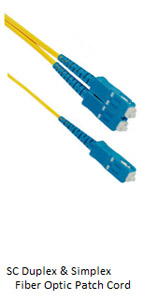

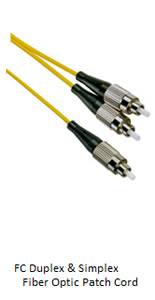

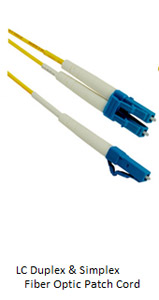

- Fibre Optic Patch Cord available in various types of simplex or duplex connectors. All fibre optic patch cord are factory terminated and tested to ensure high repeatable and low-loss connection.
Specifications
| Types of Optical Fibre | Single-Mode | Multi-Mode |
| Diameter of Optical Core / Cladding | 9/125 μm | 62.5/125 μm and 50/125 μm |
| Insertion Loss | ≤ 0.2 dB (Max. ≤ 0.3 dB) | ≤ 0.30 dB |
| Return Loss | ≥ 50 dB | ≥ 35 dB |
| Interchangeability | ≤ 0.20 dB | ≤ 0.20 dB |
| Repeatability | ≤ 0.20 dB | ≤ 0.20 dB |
| Operating Temperature | -40°C to +80°C | |
| Cable Jacket Material | Polyvinyl Chloride (PVC) or Low Smoke, Zero Halogen (LSZH) | |
| Cable Jacket Diameter | 3.0 mm | |
| Connector Ferrule | Ceramic | |
