Outdoors Armored Fibre Optic Cable
Suitable Application :
- Aerial, Outdoor Duct.
Description :

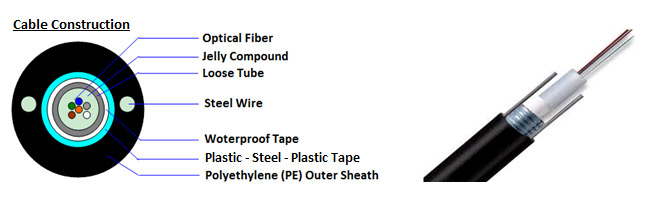

- CONNECSYS Single jelly compound filled loose tube containing up to 12 optical fibre cores which color code as per color coding scheme. Armored by waterproof tape and steel tape, and surrounded by moisture barrier bonded to Polyethylene (PE) outer sheath incorporating two parallel steel wire strength elements.
Physical Characteristic
| Optical Fibre Count | 2 – 12 cores |
| Optical Fibre Type | Multimode 62.5/125 μm OM1; Multimode 50/125 μm OM2; Multimode 50/125 µm OM3; Singlemode 9/125 μm. |
| Centered Loose Tube Material | Polybutylene Terephthalate (PBTP) |
| Tube Diameter | 1.9 mm - 2.60 mm |
| Tube Filling | Thixotropic Jelly Compound |
| 2 Parallel Steel Wire Strength Member Diameter | 1.20 mm |
| Thickness of Waterproof Tape | 0.25 mm |
| Armoring Plastic - Steel - Plastic Tape | 0.20 mm |
| Polyethylene (PE) Sheath Nominal Thickness | 2.60 mm – 3.00 mm |
| Polyethylene (PE) Sheath Outer Diameter | 8.60 mm - 10.20 mm |
Mechanical Characteristics And Compliance Tests
| Tensile Resistance – Short Term Tensile Resistance – Long Term | 1500 N 600 N | Conform to IEC-794-1-E1 |
| Crush Resistance – Short Term Crush Resistance – Long Term | 1000 N/100 mm 300 N/100 mm | Conform to IEC-794-1-E3 |
| Impact Resistance | Conform to IEC-794-1-E4 | |
| Repeated Bending | Conform to IEC-794-1-E6 | |
| Torsion | Conform to IEC-794-1-E7 | |
| Flexing | Conform to IEC-794-1-E8 | |
| Kink Resistance | Conform to IEC-794-1-E10 | |
| Minimum Bending Radius | Conform to IEC-794-1-E11 | |
| Vibration Test | Conform to IEC-794-1 | |
| Water Penetration | Conform to IEC-794-1-F5B | |
| Dielectric Strength of Outer Jacket | Conform to ITU-T Rec. K25 | |
| Abrasion | Conform to IEC-794-1-E2 | |
| Spark Test Voltage | Spark Test Voltage on outer jacket will be no less than 8kV AC | |
| Temperature Requirements | Operation: -40°C ~ +60°C (Conform to Temperature Cycling Test IEC-794-1-F1) Installation: -30°C ~ +60°C | |
| Dynamic Load Bending Radius | 10 Times of Cable Diameter | |
| Static Load Bending Radius | 20 Times of Cable Diameter | |
| Optical Fibre Color (IEC 60304) | Blue, Orange, Green, Brown, Gray, White, Red, Black, Yellow, Violet, Pink, Aqua. | |
