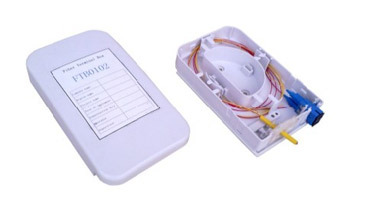

FTTH Fibre Optic Termination Box CFTB-102

Suitable Application :
  • FTTH Networking, Fibre Optic Telecommunication Networking, Fibre Optic Security System, Fibre Optic Local Area Network.
Description :
  • CONNECSYS FTTH Fibre Optic Wall Socket CFTB-102 is widely used in FTTH network. It usually applied at the end user termination together with FTTH Fibre Optic Drop Cable. It is specially designed in light weight, small compact size and effective cable management and easy installation.
Product Features
ModelCFTB-102
MaterialPolycarbonate (PC) / Acrylonitrile Butadiene Styrene (ABS)
CapacityMaximum 2 – 4 Cores
Cable PortMaximum 2 Simplex SC Adapter or 4 LC Adapters.
Splice TrayMaximum 1
Capacity of Splice TrayMaximum 2 – 4 Cores
InstallationIndoor Wall Mountable
Dimension(W) 115mm X (H)205mm X (D) 35mm
