FTTH Fibre Optic Distribution Box CFDB-224
Telekom Malaysia Type Approval: ST OSP 029/12
SIRIM Certificate of Conformity: LABB/15A/1211/S(11-2006)
Suitable Application :
- FTTH Networking, Fiber Optic Telecommunication Networking, Fiber Optic Security System, Fiber Optic Local Area Network.
Description :

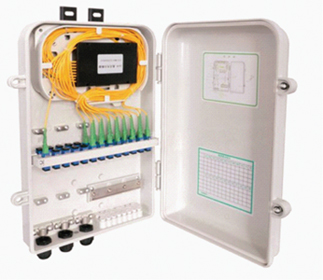

- CONNECSYS FTTH Fiber Optic Distribution Box CFDB-224 is specially applied to protect and distribute the optical fiber links in FTTH network. The distribution box is specially designed in accordance to industrial standard it is easy user interface and enabled simple cables management. The distribution box is made of high impact plastic and suitable for wall or pole mounting application.
Product Features
| Model | CFDB-224 |
| Material | Polycarbonate (PC) / Acrylonitrile Butadiene Styrene (ABS) |
| Resistance Against | Ultraviolet (UV), Rainfall, Dust |
| Capacity | Maximum 24 FTTH optical fibre drops |
| Incoming & Outgoing Design | 3 Inlet Ports & 24 Outlet Ports |
| Installation | Wall Mountable, Pole Mountable |
| Dimension | (W) 295mm X (H) 458mm X (D) 104mm |
| Compliance | SIRIM Tested of IEC 60529:2001 (Edition 2.1) for IP65. |
| Agency Compliance | Telekom Malaysia Berhad
|
