FTTH G657A Access Building Fibre Optic Cable
Suitable Application :
- Backbone distribution cable for FTTH Networking, Fibre Optic Telecommunication System, Fibre Optic Local Area Network.
Description :

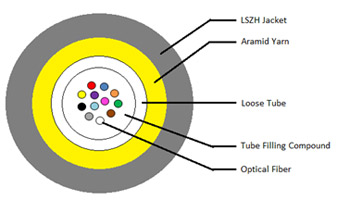

- Optical fibres were positioned in a loose tube made of high modulus plastic that provide reasonable crush resistance and flexibility to the cable. Hydrolysis resistance high strength loose tubes are filled with water-resistance compound filling. The loose tube is cover with a layer of aramid yarn as strength member to ensure tensile strength. The cable is completed with LSZH (Low Smoke, Zero Halogen, Flame-Retardant) jacket. The cable was specially designed with smaller diameter, light weight and provide excellent mechanical and temperature performance.
Optical Characteristics
| Attenuation | 1310 nm | ≤ 0.35 dB/km |
| 1383 nm | ≤ 0.35 dB/km | |
| 1460 nm | ≤ 0.25 dB/km | |
| 1550 nm | ≤ 0.21 dB/km | |
| 1625 nm | ≤ 0.23 dB/km | |
| Attenuation vs. Wavelength Max. α differences | 1285 – 1330 nm 1525 – 1575 nm | ≤ 0.03 dB/km ≤ 0.02 dB/km |
| Zero Dispersion Wavelength | 1300 – 1324 nm | |
| Zero Dispersion Slope | ≤ 0.092 ps/(nm∙km) | |
| Cable Cut Off Wavelength λ cc | ≤ 1260 nm | |
| Mode Field Diameter (PMD) | 1310 nm 1550 nm | 8.4 – 9.2 μm 9.3 – 10.3 μm |
Environmental Characteristic (@ 1310 nm, 1550 nm & 1625 nm)
| Temperature Dependence Induced Attenuation at | -60°C to +85°C | ≤ 0.05 dB/km |
Technical Parameters
| Cable Type (Fibre Count) | 2 – 12 | 14 – 24 |
| Cable Diameter | 6.2 ± 0.5 mm | 7.0 ± 0.5 mm |
| Unitube Diameter | 3.0 mm | 4.0 mm |
| Tensile Strength (Long/Short Term), N | 200/800 | 200/800 |
| Crush Resistance (Long/Short Term), N/100mm | 300/1000 | 300/1000 |
| Bending Radius (Static/Dynamic), mm | 10 D / 20 D | 10 D / 20 D |
| Compliances | YD/T 1256.4-2005, ICEA-596, GR-409, IEC 60794, IEC 332-1, IEC 332-33C. | |
