FTTH G657A Indoor Drop Fibre Optic Cable
Suitable Application :
- FTTH Networking, Fibre Optic Telecommunication System, Fibre Optic Local Area Network.
Description :

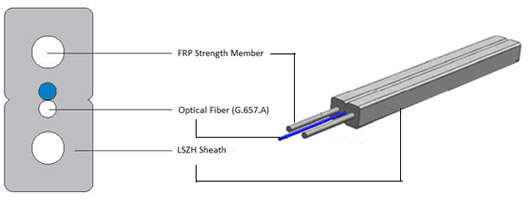

- The G.657.A Class optical fibres are positioned in the center of the cable. Two parallel FRP (Fibre Reinforced Plastic) are placed beside to protect the optical fibres and ensure high tensile strength. The cable is completed with LSZH (Low Smoke, Zero Halogen, and Flame-Retardant) sheath to ensure user safety and environmental friendly. This cable special novel groove design provide simple structure, light weight, metal free and made for easily strip and splice, therefore, simplified installation and maintenance.
Optical Characteristics
| Attenuation | 1310 nm | ≤ 0.35 dB/km |
| 1383 nm | ≤ 0.35 dB/km | |
| 1460 nm | ≤ 0.25 dB/km | |
| 1550 nm | ≤ 0.21 dB/km | |
| 1625 nm | ≤ 0.23 dB/km | |
| Attenuation vs. Wavelength | 1285 – 1330 nm | ≤ 0.03 dB/km |
| Max. α differences | 1525 – 1575 nm | ≤ 0.02 dB/km |
| Zero Dispersion Wavelength | 1300 – 1324 nm | |
| Zero Dispersion Slope | ≤ 0.092 ps/(nm∙km) | |
| Cable Cut Off Wavelength λ cc | ≤ 1260 nm | |
| Mode Field Diameter (PMD) | 1310 nm 1550 nm | 8.4 – 9.2 μm 9.3 – 10.3 μm |
Technical Parameters
| Fibre Count | 1 - 2 |
| Cable Size, mm | (2.0 ± 0.1) X (3.0 ± 0.1) |
| Tensile Strength (Long/Short Term), N | 40/80 |
| Crush Resistance (Long/Short Term), N/100mm | 500/1000 |
| Bending Radius (Static/Dynamic), mm | 10 D / 20 D |
| Storage and Operating Temperature, °C | -20°C to 60°C |
