Category 5E UTP Cable
Suitable Application :
- Premise Horizontal Cable, Fast Ethernet 100BASE-Tx, 10/100BASE-Tx, token ring, 100BaseVG ANYLAN, 155 Mbps ATM, 622ATM, 100 Mbps TP-PMD, ISDN, Analog and Digital Video and Analog and Digital Voice (VoIP)
Description :

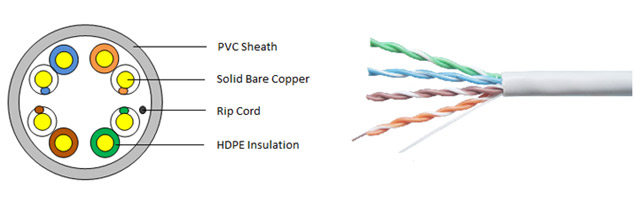

- 24 AWG Solid Bare Copper Conductor, Non-Plenum, High-Density Polyethylene (HDPE) Insulation, Rip Cord, Twisted Pairs, PVC Jacket.
Physical Characteristic
| • Number of Pairs | 4 | • Stranding | Solid | • Rip Cord | Yes |
| • AWG | 24 | • Conductor | Solid Bare Copper | • Nominal Diameter | 5.10 ± 0.40mm |
Detailed Specifications
| Insulation Material | High-Density Polyethylene (HDPE) |
| Outer Shield Material | Unshielded |
| Outer Jacket Material | Polyvinyl Chloride (PVC), complies to RoHS |
| Compliances | ISO/IEC 11801, TIA/EIA-568 C.2, YD/T 1019 |
Mechanical Characteristics
| Operating Temperature Range | -20°C to +80°C |
| Flame Test | Type CM |
| Sheath Average Tensile Strength | 13 Mpa |
Electricals Characteristics @ 20°C
| 1.0 – 100.0 MHz Impedance | 100 ± 15 Ω |
| 1.0 – 100.0 MHz Delay Shew | ≤45 ns/100m |
| Maximum DC Resistance | 9.5 Ω/100m |
| Maximum DC Conductor Resistance Unbalance | 5% |
Technical Performances @ 20°C
| Frequency MHz | Return Loss ≥dB | Attenuation ≤dB | NEXT ≥dB | Phase Delay ≤ns | PSNEXT ≥dB | ELFEXT ≥dB | PSELFEXT ≥dB |
| 1 | 20.0 | 2.0 | 65.3 | 570.00 | 62.3 | 63.8 | 60.8 |
| 4 | 23.0 | 4.1 | 56.3 | 552.00 | 53.3 | 51.8 | 48.8 |
| 8 | 24.5 | 5.8 | 51.8 | 546.73 | 48.8 | 45.7 | 42.7 |
| 10 | 25.0 | 6.5 | 50.3 | 545.38 | 47.3 | 43.8 | 40.8 |
| 16 | 25.0 | 8.2 | 47.2 | 543.00 | 44.4 | 39.7 | 36.7 |
| 20 | 25.0 | 9.3 | 45.8 | 542.05 | 42.8 | 37.8 | 34.8 |
| 25 | 24.3 | 10.4 | 44.3 | 541.20 | 41.3 | 35.8 | 32.8 |
| 31.5 | 23.6 | 11.7 | 42.9 | 540.44 | 39.9 | 33.9 | 30.9 |
| 62.5 | 21.5 | 17.0 | 38.4 | 538.55 | 35.4 | 27.9 | 24.9 |
| 100 | 20.1 | 22.0 | 35.3 | 537.60 | 32.3 | 23.8 | 20.8 |
