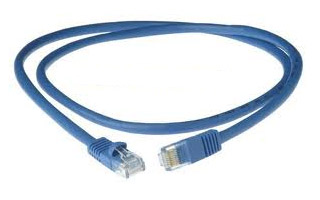

Category 6 UTP Patch Cord
Suitable Application :
- Gigabit Ethernet 1000BASE-Tx, Fast Ethernet 100BASE-TX, 10/100BASE-Tx, token ring, 100BaseVG ANYLAN, Mbps 155ATM, 622ATM, 100 Mbps TP-PMD, ISDN, Analog and Digital Video and Analog and Digital Voice (VoIP)
Description :
- CONNECSYS Category 6 UTP Patch Cord, comply with TIA/EIA-568-B and ISO/IEC 11801 requirements for Category 6 performance. Factory terminated to a 50µm gold-plated Category 6 RJ45 Modular Plug on both end, wired to the T568B wiring pattern ensuring high quality performance. Plug protector provide strain relief and control cable bending radius.
Specifications and Technical Data
| Cable Type | 4 Twisted Pair | |
| Shielding | Unshielded | |
| Overall Nominal Diameter | 6.10 ± 0.40mm | |
| Operating Temperature Range | -20°C to +60°C | |
| Flame Test | Type CM | |
| Wiring Pattern | T568B | |
| Material | Conductor | 23 AWG Solid Bare Copper |
| Insulation | Polyethylene (PE) | |
| Jacket | Polyvinyl Chloride (PVC) | |
| Plug Housing | Clear Polycarbonate | |
| Terminal | Phosphor Bronze with 1.27μm (50μ inch.) gold plating on localized area, gold flash over reminder, over 2.54µm minimum thick nickel under plating. | |
| Plug Insertion Life | ≥ 1000 times | |
| Voltage Rating | ≤ 80 VAC | |
| Current Rating | ≤ 1.5 A | |
| Insulation Resistance | ≥ 500 MΩ | |
| Contact Resistance | ≤ 10 MΩ | |
| Jacket Color | Blue | |
| Compliance | TIA/EIA -568-B ISO/IEC 11801 Category 6 connect hardware requirements. | |
