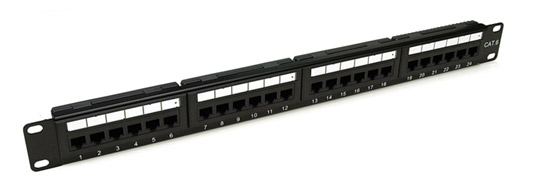

Category 6 UTP 24 Ports Patch Panel
Suitable Application :
- Premise Horizontal Cable, Gigabit Ethernet 1000BASE-Tx, Fast Ethernet 100BASE-TX, 10/100BASE-Tx, token ring, 100BaseVG ANYLAN, Mbps 155ATM, 622ATM, 100 Mbps TP-PMD, ISDN, Analog and Digital Video and Analog and Digital Voice (VoIP)
Description :
- CONNECSYS Category 6 UTP Patch Panel meets TIA/EIA-568-B.2-1 and ISO/IEC 11801 requirements for Category 6 component performance. Universal wiring labels permit termination to either T568A or T568B wiring patterns. Available in 24 ports and shall terminate the building cabling on 110-style insulation displacement connector.
Specifications and Technical Data
| Materials | Housing | Polybutylene Terephthalate (PBT) + GF 15%, 94V-0 rated |
| Panel | Carbon steel with black powder coated. | |
| Contacts | Phosphorous bronze, plated with 1.27µm (50μ inch.) minimum thick gold in localized area; Phosphorous bronze in solder area over 1.27μm minimum thick nickel plating. | |
| Acceptance | 22 – 24 AWG | |
| Transmission performance | TIA/EIA-568-B.2-1 standard, ISO/IEC 11801` | |
| Voltage Rating | 125 VAC RMS | |
| Current Rating | 1.5 AMP | |
| Contact Resistance | 100 milliohms maximum | |
| Insulation Resistance | 1000 megohms min. @ 500 VDC | |
| Dielectric Strength | 750 VAC RMS 60Hz, 1 MIN. | |
| Contact Re-termination | ≥ 200 | |
| Standard Accessories | Screws, label and back bar. | |
| Operating Temperature | Storage | -40°C to +85°C |
| Operation | 0°C to 70°C | |
Performance Data
| Frequency MHz | Attenuation dB | Return Loss dB | NEXT dB | FEXT dB |
| 1 | 0.1 | 30.0 | 75.0 | 75.0 |
| 4 | 0.10 | 30.0 | 75.0 | 71.1 |
| 8 | 0.10 | 30.0 | 75.0 | 65.0 |
| 10 | 0.10 | 30.0 | 74.0 | 63.1 |
| 16 | 0.10 | 30.0 | 69.9 | 59.0 |
| 20 | 0.10 | 30.0 | 68.0 | 57.1 |
| 25 | 0.10 | 30.0 | 66.0 | 55.1 |
| 31.5 | 0.11 | 30.0 | 64.1 | 53.2 |
| 62.5 | 0.16 | 28.0 | 58.1 | 47.2 |
| 100 | 0.20 | 24.0 | 54.0 | 43.1 |
| 200 | 0.28 | 18.0 | 48.0 | 37.1 |
| 250 | 0.32 | 16.0 | 46.0 | 35.1 |
